Ever peered into your fridge and wondered, “Where is the defrost drain on a Kenmore side-by-side refrigerator?”

Grab your detective hats because I’m here to help you solve this chilly mystery! We’ll uncover the secrets of your fridge’s frosty features.

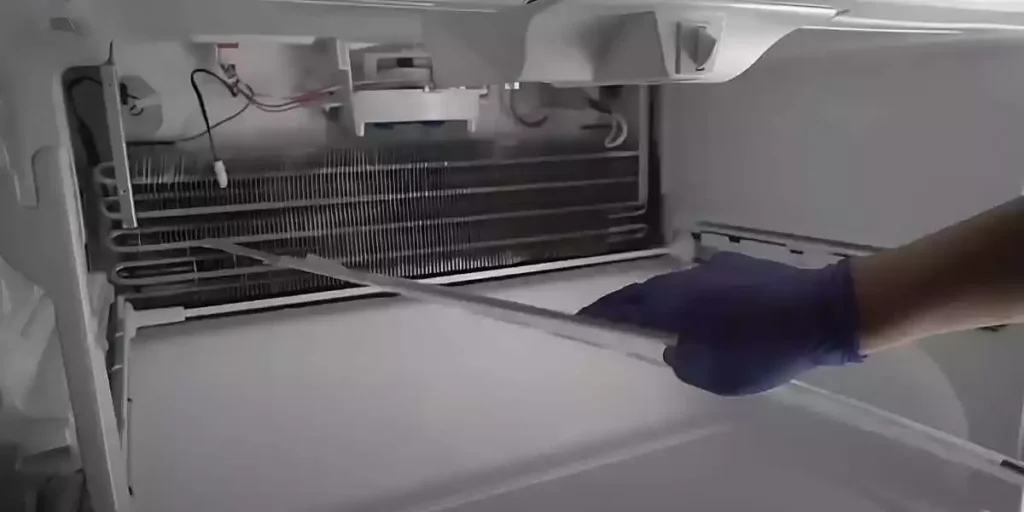

where is defrost drain on kenmore side by side refrigerator

Where Is Defrost Drain On Kenmore Side By Side Refrigerator?

The defrost drain in a Kenmore side-by-side refrigerator is located along the back wall inside the freezer compartment at the bottom center.

If you don’t spot it immediately, it might be located under a frozen floor panel.

Locating The Defrost Drain: Exploring The Freezer Compartment

Check The Back Wall:

Begin by examining the back wall of the freezer compartment. Look for a small opening or hole near the bottom.

This is where the defrost drain is typically located. If necessary, use a flashlight to help you see better.

Remove Any Obstructions:

If you spot the drain hole, ensure it is clear of any ice, food particles, or debris that may be blocking it.

It’s important to keep the drain unobstructed for proper water flow. To avoid causing damage, use a plastic utensil or a soft cloth to clear any blockages.

Check Under The Freezer Floor Panel:

check under the freezer floor panel

Some refrigerators have a removable floor panel in the freezer compartment. If you don’t find the drain hole on the back wall, gently lift or slide out the panel.

This will provide access to the drain area, allowing you to locate it more easily.

Defrost Any Ice Buildup:

If you notice that the drain hole or its surrounding area is covered in ice, you’ll need to defrost it.

Use a hairdryer set to a low heat setting to melt the ice gradually. Take care not to expose any plastic components to excessive heat, as it may cause damage.

Look For A Drip Tray:

Once you have located the drain, check if there is a drip tray underneath it. This tray collects water from the defrost cycle and redirects it to the drain.

If present, remove the tray and clean it thoroughly. Use warm, soapy water and a soft cloth to remove any residue or buildup.

Clean The Drain:

To ensure proper drainage, it’s essential to clean the drain opening. Use a small brush, such as a toothbrush or a pipe cleaner, to dislodge any clogs or debris gently.

Insert the brush or pipe cleaner into the drain opening and move it back and forth to clear any blockages.

Flush With Warm Water:

Flush With Warm Water

After cleaning the drain, flush it with a small amount of warm water. This helps remove any remaining debris and ensures smooth water flow through the drain.

Read About  How Ice Makers Use Sensors to Stop Filling? Sensor Insights

Use a cup or a small container to pour the warm water into the drain opening.

Replace The Floor Panel And Drip Tray:

If you have to remove any components, such as the floor panel or drip tray, make sure to put them back in their original positions.

Ensure they are securely in place and aligned correctly to maintain the proper functioning of the refrigerator.

Common Signs Of A Clogged Defrost Drain

Water Pooling At The Bottom Of The Freezer:

One of the primary signs of a clogged defrost drain is water collecting at the bottom of your freezer. You might notice a small pool of water or even a layer of ice forming there.

This occurs because the water from the defrost cycle has nowhere to go and ends up gathering inside the freezer instead of draining away.

Water Leaking Onto The Floor:

As the water continues to accumulate, it can eventually overflow from the freezer and leak onto your kitchen floor.

This can create a mess and potentially damage your flooring.

If you notice water pooling near the refrigerator or coming from underneath it, a clogged defrost drain could be the culprit.

A Foul Odor Emanating From The Refrigerator:

Another indication of a clogged defrost drain is a foul smell coming from your refrigerator.

When water accumulates in the freezer, it can mix with food debris, leading to the growth of mold and mildew.

This can cause an unpleasant odor to permeate your refrigerator, making it an uninviting place for your food.

Excessive Frost Or Ice Buildup:

excessive frost or ice buildup

If you frequently find excessive frost or ice accumulating on the walls or shelves of your freezer, it may be due to a clogged defrost drain.

When the drain is blocked, the water cannot escape, and instead, it freezes within the freezer, resulting in frost and ice buildup.

Strange Noises Coming From The Freezer:

A clogged defrost drain can cause unusual noises to emanate from your freezer.

As the water accumulates and freezes, it can interfere with the normal operation of the evaporator fan or other components.

This can lead to rattling, humming, or even grinding noises that are out of the ordinary.

Step-By-Step Guide: Clearing A Clogged Defrost Drain

Step 1: Gather The Necessary Materials

To begin, make sure you have the following items on hand:

  • A turkey baster or a large syringe
  • A mild cleaning solution (such as warm water mixed with dish soap)
  • A small funnel or a flexible tube
  • Clean towels or rags

Step 2: Unplug The Refrigerator

unplug the refrigerator

Safety is paramount. Before you start working on your refrigerator, unplug it from the power source.

This precautionary measure ensures your safety and avoids any potential electrical mishaps.

Step 3: Locate The Defrost Drain

The defrost drain is typically located at the back of the freezer compartment.

Read About  Kenmore Refrigerator Model 795 Water Filter

It’s a small opening or channel that allows water to drain from the freezer during the defrosting cycle. Take a moment to find it before moving on to the next step.

Step 4: Clear The Visible Debris

Inspect the defrost drain for any visible debris, such as food particles or ice buildup. Use a clean towel or rag to remove any obstructions you find.

This step is crucial as it may solve the problem without needing to go further.

Step 5: Flush The Drain With Warm Water

Using your turkey baster or a large syringe, fill it with warm water. Carefully insert the tip of the baster or syringe into the defrost drain opening.

Gently squeeze the water into the drain, applying steady but not forceful pressure. This will help flush out any remaining debris or ice blocking the drain.

Step 6: Clean The Drain With A Mild Solution

Prepare a mild cleaning solution by mixing warm water with a small amount of dish soap. Pour this solution into the turkey baster or syringe

Insert the tip into the drain opening once again and squeeze the soapy water into the drain.

This will help dissolve any grease or residue that may be contributing to the clog.

Step 7: Use A Funnel Or Tube For Stubborn Clogs

If the clog persists, you can use a small funnel or a flexible tube. Insert it into the defrost drain and gently maneuver it to dislodge the obstruction.

Be careful not to use excessive force, as this could damage the drain or other components of the refrigerator.

Step 8: Dry The Area And Plug The Refrigerator Back In

Once you are satisfied that the drain is clear, use clean towels or rags to dry the area around the drain opening.

Make sure there is no standing water. Finally, plug your Kenmore side-by-side refrigerator back into the power source.

Preventive Measures: Tips For Maintaining A Clear Defrost Drain

Regularly Inspect And Clean The Drain

Make it a habit to inspect the defrost drain periodically. Locate the drain, usually found at the back of the freezer compartment, and check for any visible debris or ice buildup.

Use a clean towel or rag to remove any obstructions you find. This simple task can prevent clogs from forming and ensure efficient drainage.

Avoid Putting Large Or Sticky Items Near The Drain

When organizing your freezer, be mindful of the items you place near the defrost drain.

Large items or containers that can block the drain opening should be positioned away from it.

Similarly, avoid placing sticky or gooey substances close to the drain, as they can contribute to clogs.

Proper placement of your frozen goods can help maintain a clear and functional drain.

Clean The Drain With Warm Water And A Mild Cleaning Solution

As part of your regular maintenance routine, flush the defrost drain with warm water and a mild cleaning solution.

Read About  How To Turn Off Samsung Refrigerator For Cleaning: Ultimate Cleaning Guide

Fill a turkey baster or a large syringe with the solution and carefully insert the tip into the drain opening.

Gently squeeze the solution into the drain, using a steady pressure. This process will help remove any accumulated grease, residue, or small debris that might impede the drain’s functionality.

Use A Pipe Cleaner For Stubborn Clogs

If you encounter a stubborn clog that cannot be cleared with warm water and a cleaning solution, consider using a pipe cleaner.

Insert the pipe cleaner into the drain opening and gently maneuver it to dislodge the obstruction.

Be cautious not to apply excessive force, as it may damage the drain or other components of the refrigerator.

A pipe cleaner can be an effective tool for maintaining a clear defrost drain.

Maintain Proper Temperature Settings

Ensure that your refrigerator is set at the appropriate temperature to prevent excessive frost buildup.

When the freezer temperature is too low, frost can accumulate faster, potentially leading to a clogged defrost drain.

Refer to your Kenmore refrigerator’s user manual to determine the recommended temperature settings for optimal performance.

FAQs

What Should I Do If I Can’t See The Defrost Drain In The Freezer Compartment?

If you don’t see the drain hole on the back wall, check if there’s a removable floor panel in the freezer. Gently lift or slide out the panel to access the drain area.

Why Is It Important To Remove Any Obstructions From The Drain?

Clearing the drain of ice, food particles, or debris helps prevent clogs. A clear drain ensures that water from the defrost cycle can flow properly.

How Do I Defrost The Ice Buildup Around The Drain?

If the drain or its surrounding area is covered in ice, use a hairdryer on a low heat setting. Slowly melt the ice, being cautious not to overheat or damage any plastic parts.

Is There Anything Else I Should Check For In The Freezer Compartment?

Look for a drip tray underneath the drain. It collects water from the defrost cycle. Remove the tray if present and clean it thoroughly.

How Do I Clean The Defrost Drain Itself?

To clean the drain, use a small brush like a toothbrush or a pipe cleaner. Gently insert it into the drain opening and move it back and forth to clear any clogs or debris.

Should I Flush The Drain With Water After Cleaning?

Yes, it’s recommended to flush the drain with a small amount of warm water. This helps remove any remaining debris and ensures proper drainage.

Conclusion

Now you know the defrost drain on a Kenmore side-by-side refrigerator is your secret ally against icy build-ups.

So, next time your freezer gets frosty, you’re ready to clear the way. Remember, your fridge is more than a cooling box, it’s a clever device, and now you’re its savvy operator!
